2027 Eu Stock DDP 32Kwh 628AH 32Kw Bateras Para Kit 36Kw Solar Bateria De 36 kw 30 32 KWH Lithium 51.2V 48V Lifepo4 Battery Pack

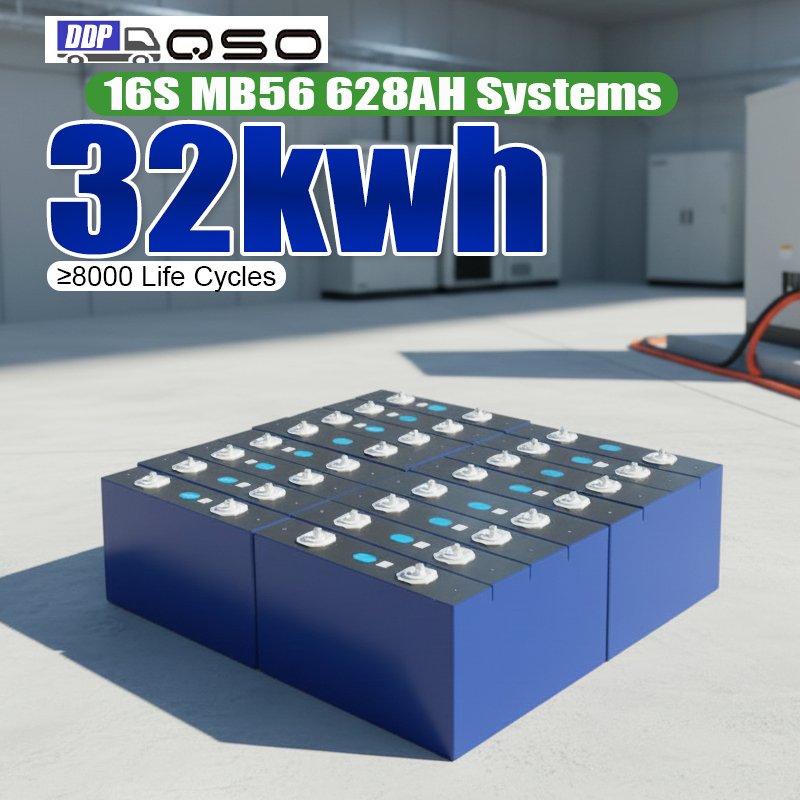

The 32KWH model uses 16 high-quality brand new A-grade MB56 628Ah primatic lithium iron phosphate battery cells.These large-capacity battery cells specifically designed for stationary energy storage.They feature thickened electrode design and support more than 8,000 deep cycles.Each cell undergoes internal resistance testing (≤0.25mΩ),capacity matching (±1% tolerance),and voltage grouping before assembly.support QR code full traceability to the production batch and date.

32KWH battery pack features a nominal voltage of 51.2V and a rated capacity of 628Ah,delivering 32 kilowatt-hours of energy storage.It uses 16 Grade A MB56 prismatic LiFePO4 cells in a 16S1P configuration.Output power range is 30-40KW,making it suitable for whole-house backup,small commercial,and agricultural applications.Actual tested capacity exceeds 640Ah due to our rigorous cell grading process with ±1% tolerance match.The all-in-one design integrates a 300A smart BMS with LCD touch screen.

32KWH battery is rated for 8000+cycle at 80% Depth of Discharge(DOD)under 25°C standard test conditions.After 8000 cycles,the battery retains 70% or more of its original capacity.At 90% DOD with 0.5C charge/discharge rate,testing demonstrates 8000+cycle.For a typical household cycling daily at 80%DOD,this translates to approximately 15-20years of service life.The built-in BMS tracks cumulative cycle count and SOH(State of Health)in real-time,accessible via the LCD touch screen or smartphone app.

The built-in 300A smart BMS supports a comprehensive range of communication protocols:CAN 2.0B (500kbps default, configurable),RS-232, RS-485 (Modbus RTU),WiFi (2.4GHz),and Bluetooth 5.0.This enables seamless integration with major inverter brands including Growatt SPF/SPH series,Sunsynk 5-16kW,Victron MultiPlus-II/Quattro with VE.Can,SMA Sunny Island,Solis hybrid,Luxpower SNA/Tek, Voltronic Axpert MAX/VM,SRNE, MPP Solar,and EASUN. Real-time monitoring of 16 series cell voltages,SOC,SOH.

Up to 16 units of the 32KWH battery can be connected in parallel via the CAN/RS485 communication bus,scaling system capacity from 32KWH to a maximum of 512KWH. The master BMS unit automatically coordinates charge/discharge across all connected packs through an intelligent address protocol.Up to 4 parallel units require no external combiner box.For 8-16 unit installations,we recommend using DC busbars with equal-length cables to prevent circulating currents and ensure balanced load sharing.

The QSO 32KWH battery pack holds the following certifications: CE (EMC Directive 2014/30/EU and LVD Directive 2014/35/EU), RoHS (Directive 2011/65/EU), IEC 62619:2017 (safety requirements for secondary lithium cells and batteries), UN38.3 (transport safety: covering altitude simulation, thermal cycling, vibration, shock, external short circuit, impact/crush, overcharge, and forced discharge tests), MSDS (compliant with GHS Revision 8), and EMC EN 61000 series standards.

Primary applications for the QSO 32KWH battery: (1) Whole-house backup power : provides 2-3 days of autonomy for an average 4-bedroom home with 15-25kWh daily consumption, pairing with 10-15kW hybrid inverters. (2) Off-grid living : sufficient for full off-grid households with moderate energy usage, combined with 8-12kW solar arrays. (3) Small commercial/agricultural : powers workshops, small farms, retail stores, telecom towers, and remote monitoring stations requiring reliable 24/7 energy.

Primary applications for the QSO 32KWH battery:(1)Whole-house backup power:provides 2~3 days of autonomy for an average 4bedroom home with 15~25kWh daily consumption,pairing with 10~15kW hybrid inverters.(2)Off-grid living: sufficient for full off-grid households with moderate energy usage,combined with 8-12kW solar arrays. (3) Small commercial/agricultural:powers workshops,small farms,retail stores,telecom towers,and remote monitoring stations requiring reliable 24/7 energy.
