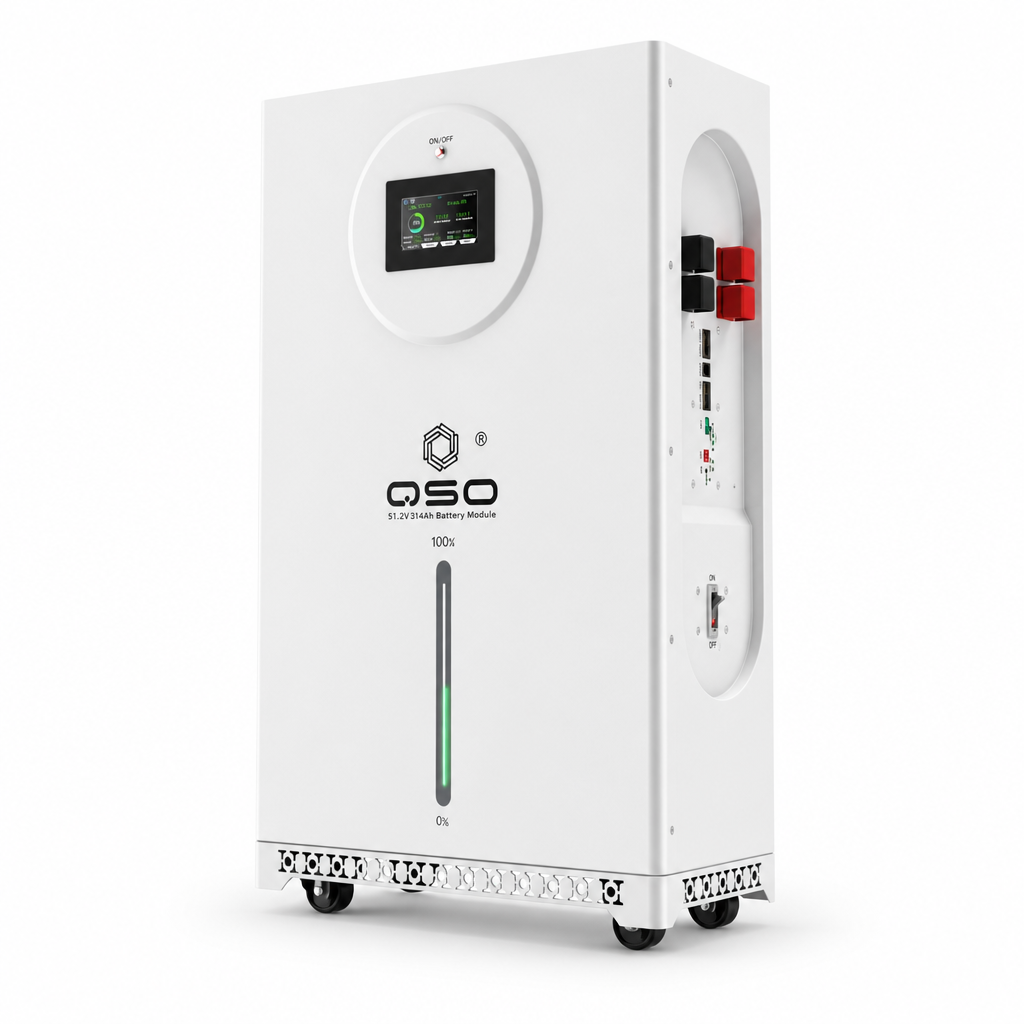

Eu Stock Lfp 51.2V314Ah 16kwh Lifepo4 48V Lithium-ion Battery Pack Netherlands Au BaterIa Litio De 51.2 V Solar Ups Backup Power

We use Grade A EV-class prismatic LiFePO4 cells from top-tier manufacturers such as evemb31/CATL REPT and Cornex. Key models include 280AH/MB31 314Ah and MB56 628Ah for 32KWH variants. Every cell passes internal resistance testing capacity grading within +/-1% tolerance and voltage matching before assembly. The 16KWH pack uses sixteen 314Ah cells in series. All cells are brand new with full QR code traceability. We provide individual cell test reports showing measured capacity IR and voltage.

Rated for 8000+ cycles at 80% Depth of Discharge under 25C standard test conditions translating to approximately 15-20 years of service for daily home solar cycling. After 8000 cycles the battery retains 70%+ of original capacity. At 90% DOD with 0.5C rate testing shows 6000+ cycles. Actual lifespan depends on operating temperature charge/discharge rates and DOD patterns. The built-in BMS tracks cumulative cycle count and SOH State of Health for easy monitoring.

It supports 16 parallel connections, offers free scheme design and capacity planning suggestions to help customers assess their own needs (average daily electricity consumption, maximum load power, electricity price policies), and builds your home photovoltaic renewable energy system.Modular design supports parallel expansion + compatibility with mainstream photovoltaic systems + intelligent EMS automatically optimizes power usage strategies,Self-consumption / Peak-valley arbitrage.

The built-in BMS supports CAN 2.0 RS-232 RS-485 WiFi and Bluetooth communication protocols. This enables integration with major inverter brands including Growatt Victron SMA Solis Luxpower and Voltronic. Through the smartphone app iOS/Android you can monitor real-time data: individual cell voltages temperature SOC SOH charge/discharge current and cumulative cycles. Remote firmware updates are supported via OTA.

The 32KWH model uses larger cells MB56 628Ah or dual MB31 in the same 16S configuration. Key differences: capacity 32KWH vs 16KWH dimensions 930x760x365mm vs 930x600x365mm weight 180-220kg vs 113-150kg price approximately $1998-2298 vs $1298-1398. Cell configuration 16S1P 628Ah or 16S2P vs 16S1P 314Ah. Recommended inverter 10-15kW hybrid vs 5-8kW hybrid. Both share the same BMS platform communication protocols and wall-mount design.

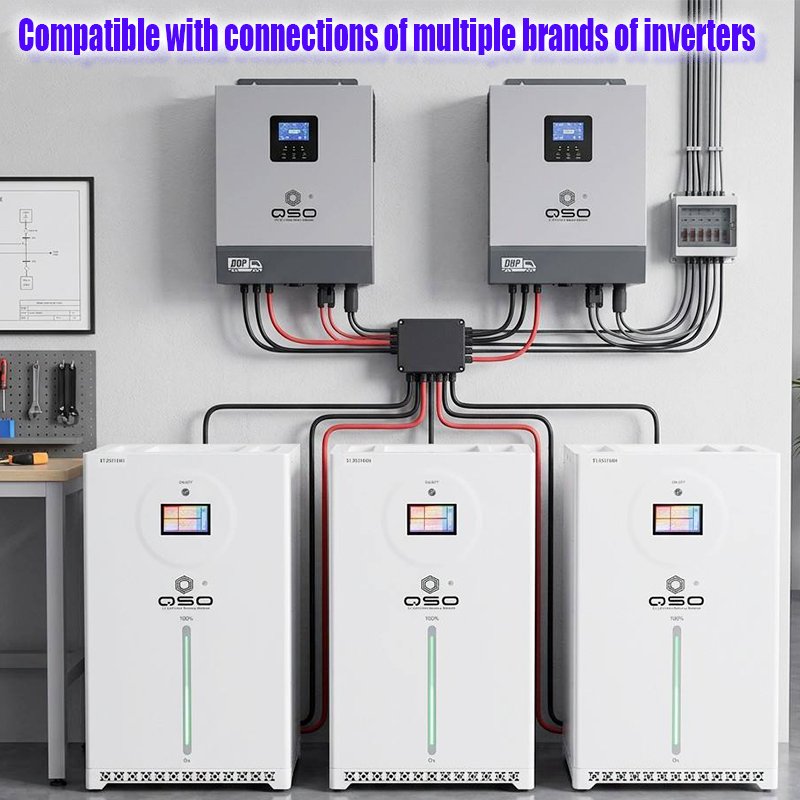

The battery is compatible with most major 48V hybrid and off-grid inverters supporting CAN or RS485 communication: Growatt SPF/SPH series Deye/Sunsynk 5-16kW Victron MultiPlus-II/Quattro with VE.Can SMA Sunny Island Solis hybrid Luxpower SNA/Tek Voltronic Axpert MAX/VM SRNE MPP Solar and EASUN. For inverters without LiFePO4 presets we provide custom voltage parameters for user-defined battery mode. Communication cables with correct RJ45/CAN pinout are supplied.

Primary applications: 1 Residential solar storage pairing with 5-15kW PV arrays for self-consumption and peak shaving. 2 Off-grid living providing 1-2 days autonomy for a typical household. 3 UPS backup seamless switching during grid outages. 4 Small commercial/agricultural power for workshops farms telecom towers. 5 EV charging buffer combined with solar. Secondary uses: marine large yachts RV systems remote monitoring stations.

Yes, the compatibility is very good. This battery supports CAN/RS485 communication protocols, and has preset communication protocols with mainstream inverters in the market (including but not limited to Victron, SMA, Deye, Growatt, Goodwe). Before purchasing, please inform us of the brand and model of your inverter, and we can assist you in confirming the compatibility and completing the matching settings before shipment.
