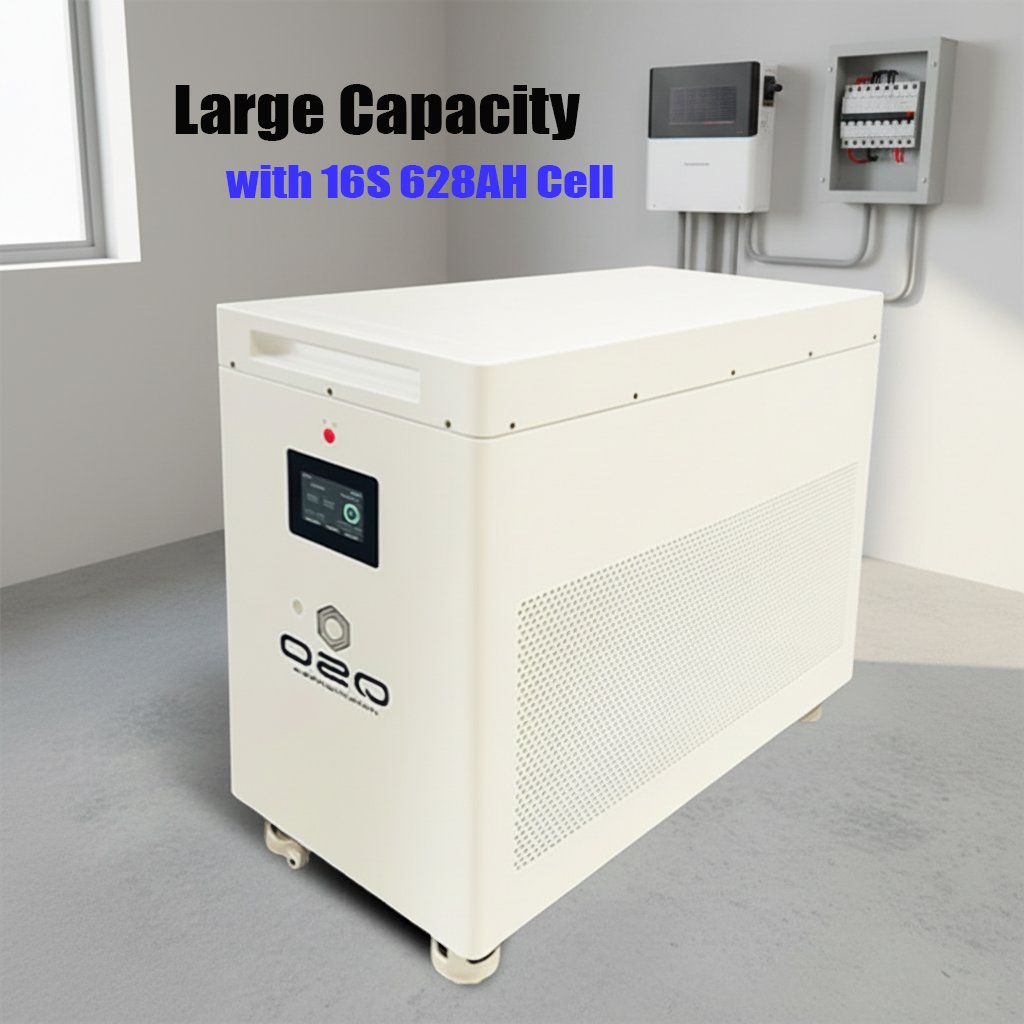

QSO Eu Stock All in One 32kw 51.2V 628Ah 628 660 Ah 32 KW kwh Home Storage Uk 4ngry 4nrgy 32kwh 48V Lifepo4 Lithium Battery Pack

9 yrs ExportingMOQ 1 pieceOEM/ODM ✓IEC 62619 / UN38.3 ✓
$2288.00/ piece
$1-998-2-288
Quantity (pieces)1 - 23 - 499500 - -1
Unit Price$2288.00$2268.00$1998.00
Capacity:
Energy:
Color:
MOQ: 1 piece  ·  Supply: 500+ models in stock  ·  Shipping: Express / Sea / Rail / DDP

Product Details

Specifications

Battery TypeLiFePO4
Model NumberLF628
Brand NameQSO
Place of OriginGuangdong, China
System Voltage51.2 V
Output Power Range30-40KW
Dimension (L*W*H)400*800*680MM
Weight278KG
System TypeStackable, Wall-Mounted, Rack-Mounted
TypeAll-In-One
Communication PortCAN, RS-232, Wifi, Bluetooth, RS485
Protection ClassIP54
Grid ConnectionOff grid
Product name32kwh Lithium Battery Pack
Cycle life≥8000 times
Net Weight278KG
Max. continuous charging current1C(628A)
Internal Resistance≤0.21mΩ
Communication functionRS485/CAN/More
Warranty5YEARS
OEM/ODMCustomized OEM ODM Battery Pack

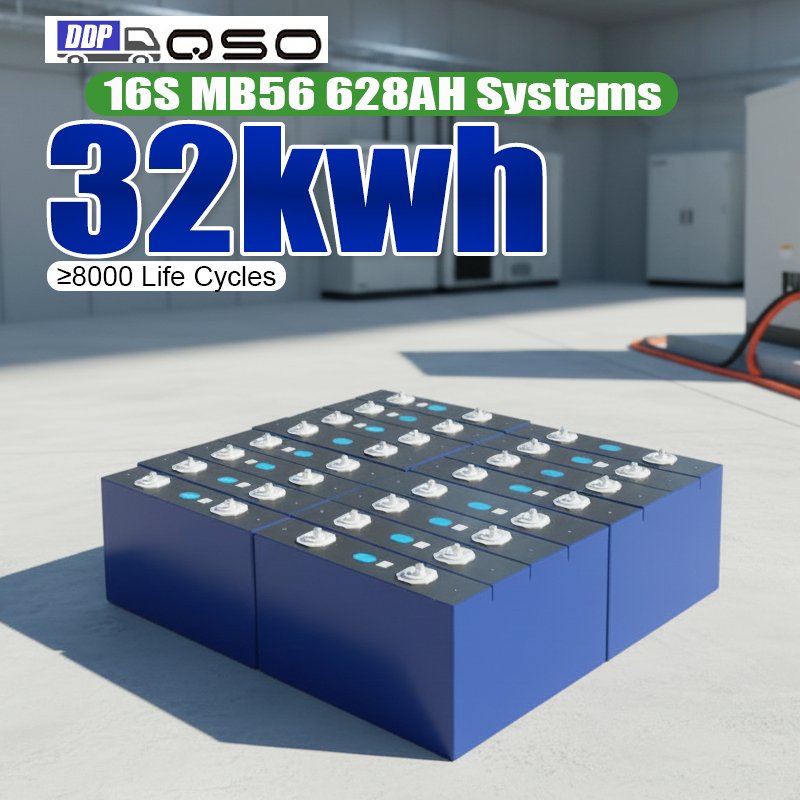

Battery type3.2V MB56 628Ah lithium battery Cell
ApplicationHome Solar Energy Storage System/UPS/RV/Off-grid/Power/BOATS,Golf Cart
High Voltage Performance: Achieves above 200V, providing high energy density and fast charging/discharge capabilities.

Safe and Environmentally Friendly: Utilizes 628AH LiFePO4 chemistry, ensuring high safety and eco-friendliness.

Long Lifespan and Economy: Offers over 8000cycle and intelligent peak-valley electricity management for cost saving.

User-Friendly Monitoring: Supports remote monitoring via mobile app, enabling easy tracking of battery health and usage.

Up to 16 units can be used in parallel. The integrated design allows for flexible assembly, covering various living scenarios.

Offer professional consultation: Assist customers in assessing their own needs (daily electricity consumption, maximum load power, electricity price policies), and provide free scheme design and capacity planning suggestion.

Energy autonomy,effectively resisting fluctuations in electricity prices and risk of power grid outages, ensuring the independence and safety of household electricity usage.

Frequently Asked Questions

employs the most stable lithium iron phosphate battery, and its thermal stability far exceeds that of other types of batteries. From the very beginning, it significantly reduced the risk of thermal runaway. The built-in intelligent BMS (Battery Management System) in the battery provides multiple hardware-level protections against overcharging, overdischarging, overcurrent, short circuits, and high temperatures. It has also passed strict certifications such as CE/ROHS/MSDS/UN38.3 to ensure safety

We(QSO)offer a one-stop solution. After the purchase, our technical team or certified installation partners will provide remote support to ensure a smooth installation and commissioning. The product is designed as modular and ready-to-use, significantly reducing the complexity of installation.

BMS provides overcharge protection to prevent damage to the battery cells, overdischarge protection to avoid deep discharge and battery damage, overcurrent and temperature protection to prevent circuit overheating (for example, 0°C - 45°C during charging), and automatically intervenes when the temperature is too high. Battery balancing: ensures that the voltages of all battery cells remain consistent, thereby extending the overall lifespan of the battery.

We have a clear after-sales process: 1:Contact our customer service by email or phone and describe the problem phenomenon. 2:Our technical support team will conduct a remote diagnosis and guide you on simple troubleshooting.3. If it is determined to be a quality issue, overseas warehouse return and exchange services will be provided.For non-human-caused problems within the warranty period (accidents and the like are usually not covered by the warranty), we will bear the repair costs.

No Sir, Maybe You Know The Cycle Life Of Cell Is Not Only Depends On The Quality Itself , But Also Be Affected By The Discharge/Charge Rate The Actual Temperature. So It Is Unresponsibility At All If A Supplier Tell You The Cycle Life But No Talking About The Actual Usage. For Room Temperature 25℃ And 1c Discharge And 0.5c Charge, The Cycle Life Of The Battery Pack Can Exceed 8000 Cycles And Warranty 5 Years, Only Home Energy Storage Usage.

We(QSO) offer clear warranty policies and a localized technical support network. In case of any issues, quick responses can be provided via hotline or online support. When necessary, professional technical engineers will be arranged for 1-on-1 special handling.

It supports 16 parallel connections, offers free scheme design and capacity planning suggestions to help customers assess their own needs (average daily electricity consumption, maximum load power, electricity price policies), and builds your home photovoltaic renewable energy system. Modular design supports parallel expansion + compatibility with mainstream photovoltaic systems + intelligent EMS automatically optimizes power usage strategies,(Self-consumption / Peak-valley arbitrage).

To hedge against rising electricity prices, long-term price increases make this fixed amount of electricity more valuable. Besides saving on electricity bills, it is also your family's energy insurance: 1. Power supply security: Seamless switching during power outages to ensure uninterrupted life; 2. Property appreciation: Enhances the green rating and modern value of the house; 3. Energy independence: Reduces reliance on the power grid and fluctuations in electricity prices.

Grade A Cells OnlyCATL / REPT / EVE / CALB
100% EOL TestingFull charge-discharge before shipping
In-house BMS R&DCAN/RS485, active balancing
Global ShippingDDP EU/US, Sea, Rail, Express
