QSO Poland Mb56 Lifepo 4 628A 668AH 684AH Lefepo4 560 668 628 AH 560Ah 3.2V 625Ah Mb56 628Ah Lifepo4 Lithium Battery 660Ah Cell
Product Details
Specifications
| Battery Size | lifepo4/MB56 628AH/MORE |
|---|---|
| Cycle Life | 8000 cycles |
| Cathode Materials | LiFePO4 |
| Application | Toys, Power Tools, Home Appliances, Boats, Consumer Electronics, Golf Carts, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies |
| Model Number | LF628 |
| Weight | 11.75kg±200g |
| Operating Temperature(℃) | -20~50℃ |
| Place of Origin | Guangdong, China |
| Product name | 628ah LifePO4 Battery |
| Net Weight | 11.75kg±200g |
| Max charge current | 1C(314A) |
| Cycle life | 8000 Times DOD80% 1C |
| Internal Resistance | ≤0.13mΩ |
| Warranty | 5years |
| Shipping | DDP,DAP,DDU |
| Payment | TT Paypal Westunion |
| Certification | CE/ROHS/MSDS/UN38.3 |
| Apllication | Home Solar Energy Storage System/UPS/RV/Off-grid/Power/BOATS,Golf Cart |

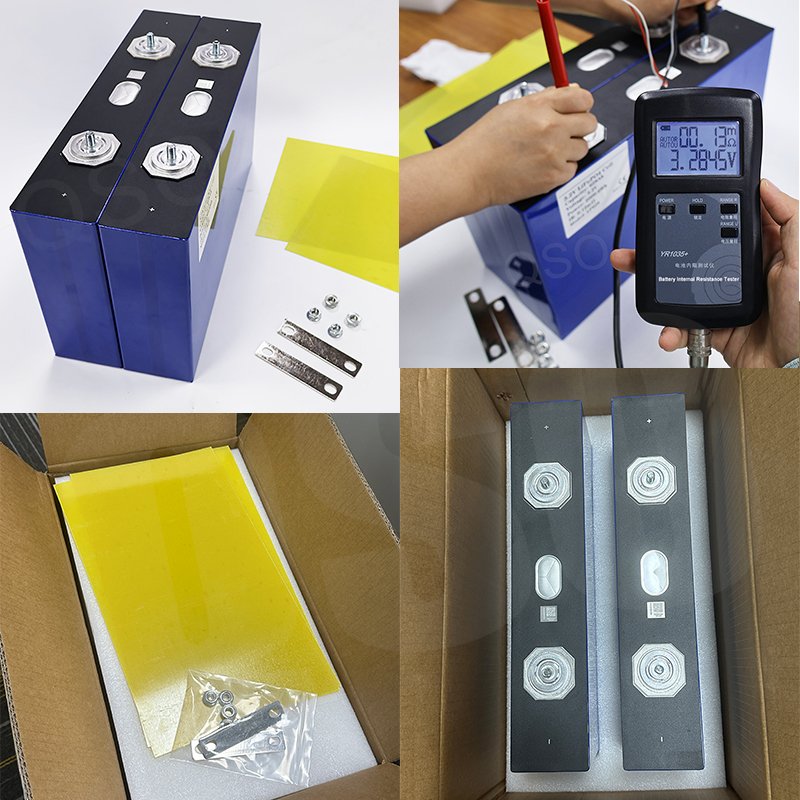

100% Brand New:Never used, never recycled. Our cells are shipped directly from fresh production lines with 100% full capacity (tested >628Ah for MB56 628Ah models).
Low-Temperature Performance: Operates normally at -30°C, ideal for cold-region use.
Long Lifespan and Economy: ≥8,000 cycles and stable performance throughout the entire lifecycle, enhancing long-term economic benefit.
DDP Fast Delivery: Goods are available in stock at our local warehouse in Europe. DDP one-stop delivery service is supported. After placing the order, the goods can be delivered to major destinations in Europe within the shortest 7 working day.
Compliance Assurance: Fully complies with the latest regulations and certification requirements of the European Union.such as CE, UN38.3, RoHS, and MSDS, ensuring the long-term compliance of your procurement and sales activitie.

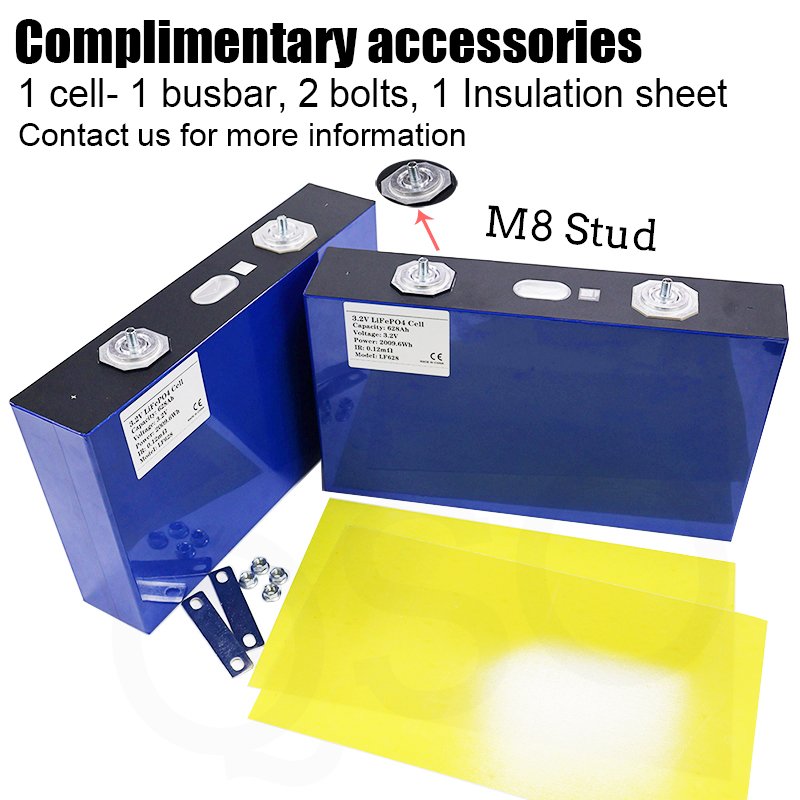

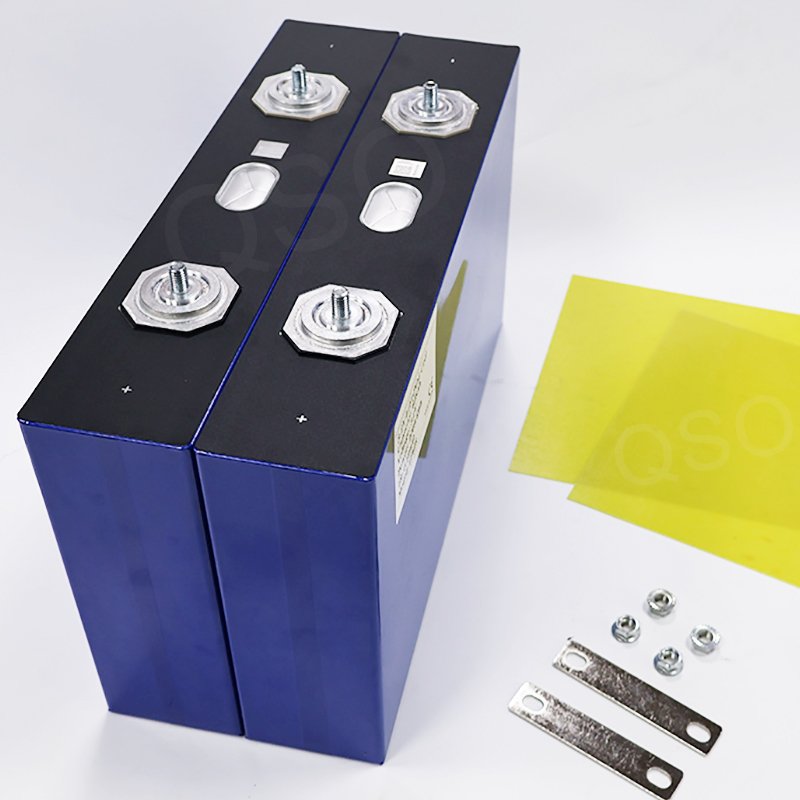

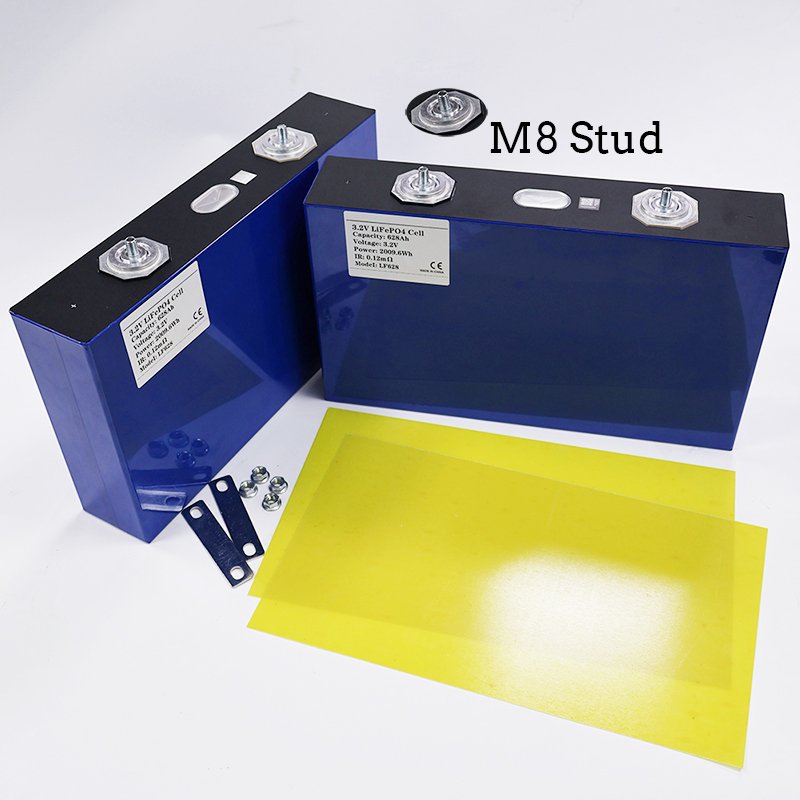

Safety, usability, long-term value:The batteries come with real product test reports, standard "nanny-level" DIY accessories (Includes Busbars\Bolts\M8 Stud\terminal blocks/insulating sheets),to build your 12V/24V/48V/51.2V system safely, a low failure rate in the company's over ten years of experience.
5-Year Warranty:We stand by our cells. Dedicated technical support for system integration, BMS matching,and installation troubleshooting.
Best ROI:Delivering the lowest cost-per-cycle in the market. Ideal for large-scale installation projects where budget and performance must be perfectly balanced.
Wide Compatibility: Suitable for diverse applications including solar energy storage, backup power, and electric vehicles,Home Solar Energy Storage System/UPS/RV/Off-grid/Power/BOATS,Golf Cart And More.

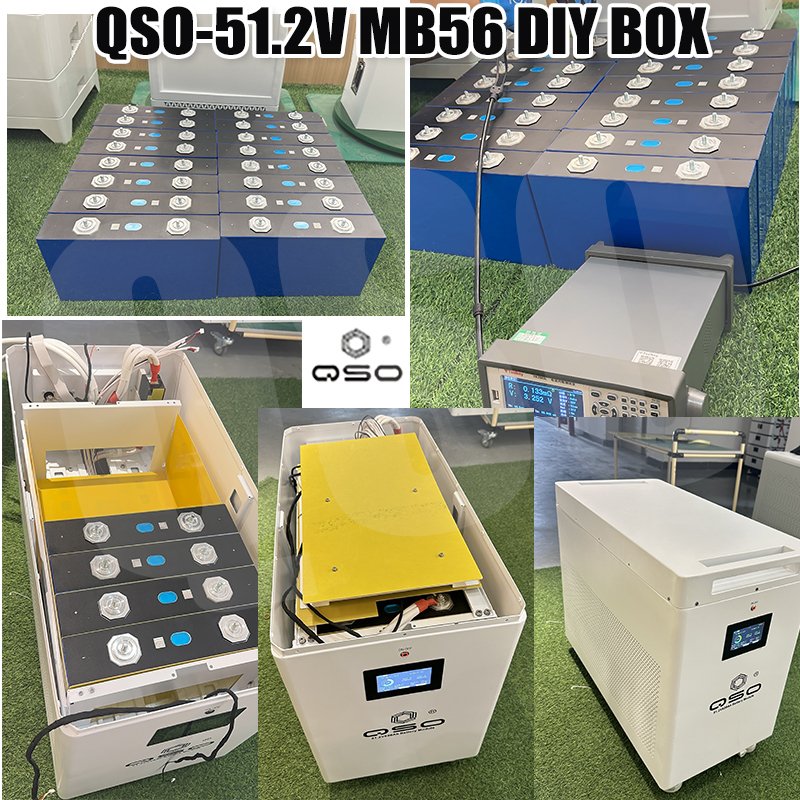

QSO Poland Mb56 Lifepo 4 628A 668AH 684AH Lefepo4 560 668 628 AH 560Ah 3.2V 625Ah Mb56 628Ah Lifepo4 Lithium Battery 660Ah Cell For 12V 24V 12.8V 48V 51.2V MB56 diy box kit case.
Frequently Asked Questions
The nominal capacity is Over 628Ah and the nominal voltage is 3.2V. 3.2 * 628 = 2.010 kWh, Therefore, the energy of a single cell is approximately 2.009 kWh, which is twice that of 314 Ah and 2.24 times that of 280 Ah. This is the most crucial advantage, significantly enhancing the energy density.
Under an 80% depth of discharge (DoD) condition, the cycle life can exceed 8,000 times (according to the test standard IEC 62619). This means that even if a charge-discharge cycle is performed once a day, it can be used for over 20 years (theoretical value), resulting in a higher long-term investment return rate (ROI).
System efficiency improvement, operation and maintenance reduction: Significantly reduces the number of connection components and sampling points in the battery cabinet. The energy storage system built based on MB56 cells can reduce 50% of maintenance components and 30% of the total life cycle maintenance labor costs, making operation more convenient and economical.
Yes, low-temperature performance is one of its key features. It can discharge normally at temperatures as low as -30°C, with a good capacity retention rate, which solves the problem of limited usage of lithium iron phosphate batteries in cold regions.
We offer clear warranty policies and a localized technical support network. In case of any issues, quick responses can be provided via hotline or online support. When necessary, professional technical engineers will be arranged for 1-on-1 special handling.
We have a clear after-sales process: 1:Contact our customer service by email or phone and describe the problem phenomenon. 2:Our technical support team will conduct a remote diagnosis and guide you on simple troubleshooting.3. If it is determined to be a quality issue, overseas warehouse return and exchange services will be provided.For non-human-caused problems within the warranty period (accidents and the like are usually not covered by the warranty), we will bear the repair costs.
some of times in stock, we can make 3-7days fast delivery. For USA, Canada, Australia and most of European country , we provide tax included services, door to door, once you place an order ,then you will receive your new battery pack in about 40-55 days at your home! We also have Oversea warehouse service, 3-7days arrive, no tax fees, please contact with our sales ! UPS, FEDEX , Post Mail and so on. We can also ship with your own shipping agent.
BMS provides overcharge protection to prevent damage to the battery cells, overdischarge protection to avoid deep discharge and battery damage, overcurrent and temperature protection to prevent circuit overheating (for example, 0°C - 45°C during charging), and automatically intervenes when the temperature is too high. Battery balancing: ensures that the voltages of all battery cells remain consistent, thereby extending the overall lifespan of the battery.
